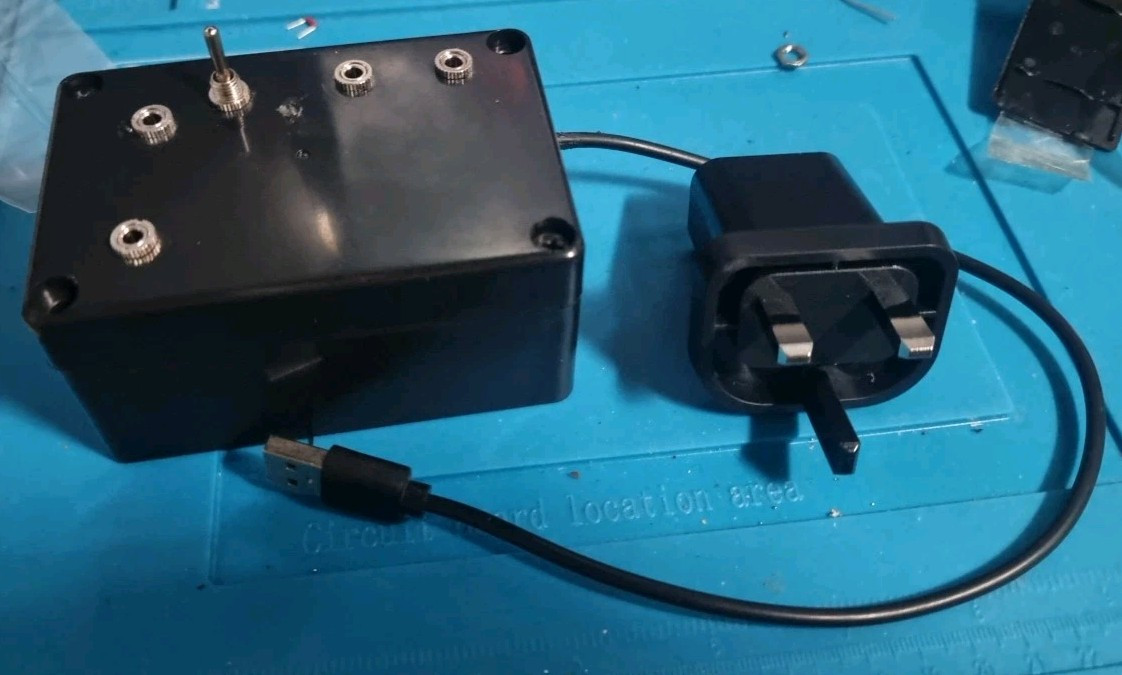

MIDI to CV Interface V1.1

Status: End of Life
Voltage In: 5 Volt standard USB
Current Draw: 0.015 Amps
Voltage Out: 3.8 Volts
Specs: 4-octave
Accuracy: +/- 1 note
Outputs: 2 Gate, 2 Voltage Out
Last Firmware Update: Feb 2026

This was the first edition and was put together by hand.
The power cable was attached, so it had some drawbacks.
The cases were found to not be able to take much damage.
Firmware updates still active, email support@breadboardstudios.com for free updates

MIDI to CV Interface V1.2

Status: End of Life
Voltage In: 5 Volt standard USB
Current Draw: 0.015 Amps
Voltage Out: 3.8 Volts
Specs: 4-octave
Accuracy: +/- 1 note
Outputs: 2 Gate, 2 Voltage Out, 2 CC to CV out
Last Firmware Update: Feb 2026

This was the second edition and was put together by hand.
Added were 2 more outputs, for MIDI CC to voltage conversion.
The power cable was attached, so it had some drawbacks.
The cases were found to not be able to take much damage.
Firmware updates still active, email support@breadboardstudios.com for free updates

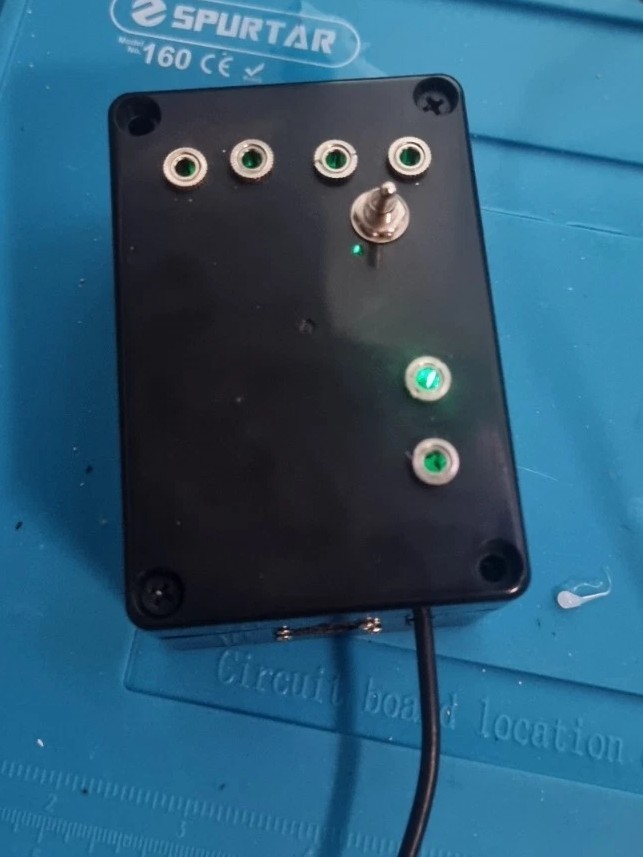

MIDI to CV Interface V1.3

Status: End of Life
Voltage In: 5 Volt standard USB
Current Draw: 0.015 Amps
Voltage Out: 3.8 Volts
Specs: 4-octave
Accuracy: +/- 0.75 note
Outputs: 2 Gate, 2 Voltage Out
Last Firmware Update: May 2026

This was the third edition and was put together by hand.
The power cable has been made removable.
The cases were completely updated, much more rugged.
Firmware updates still active, email support@breadboardstudios.com for free updates

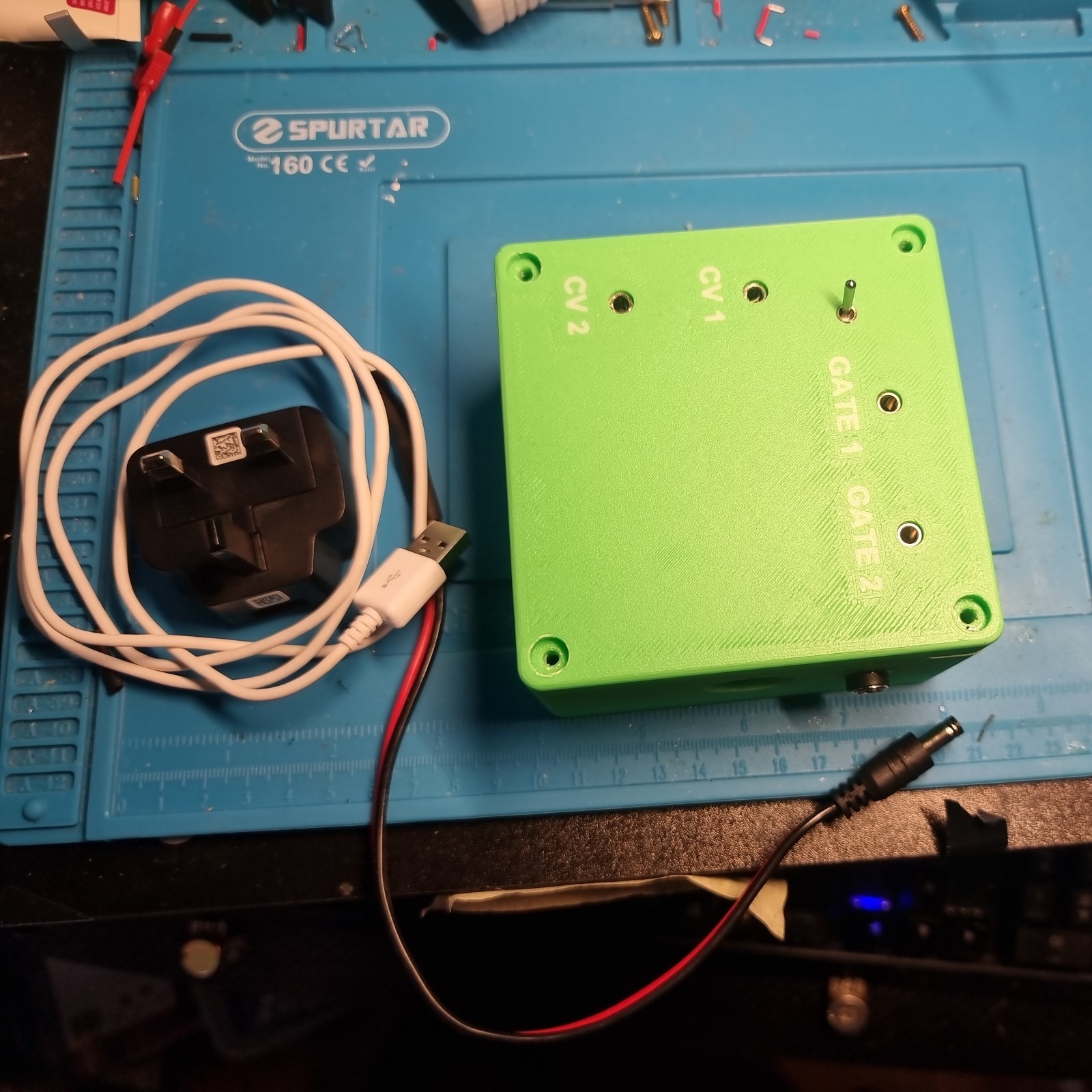

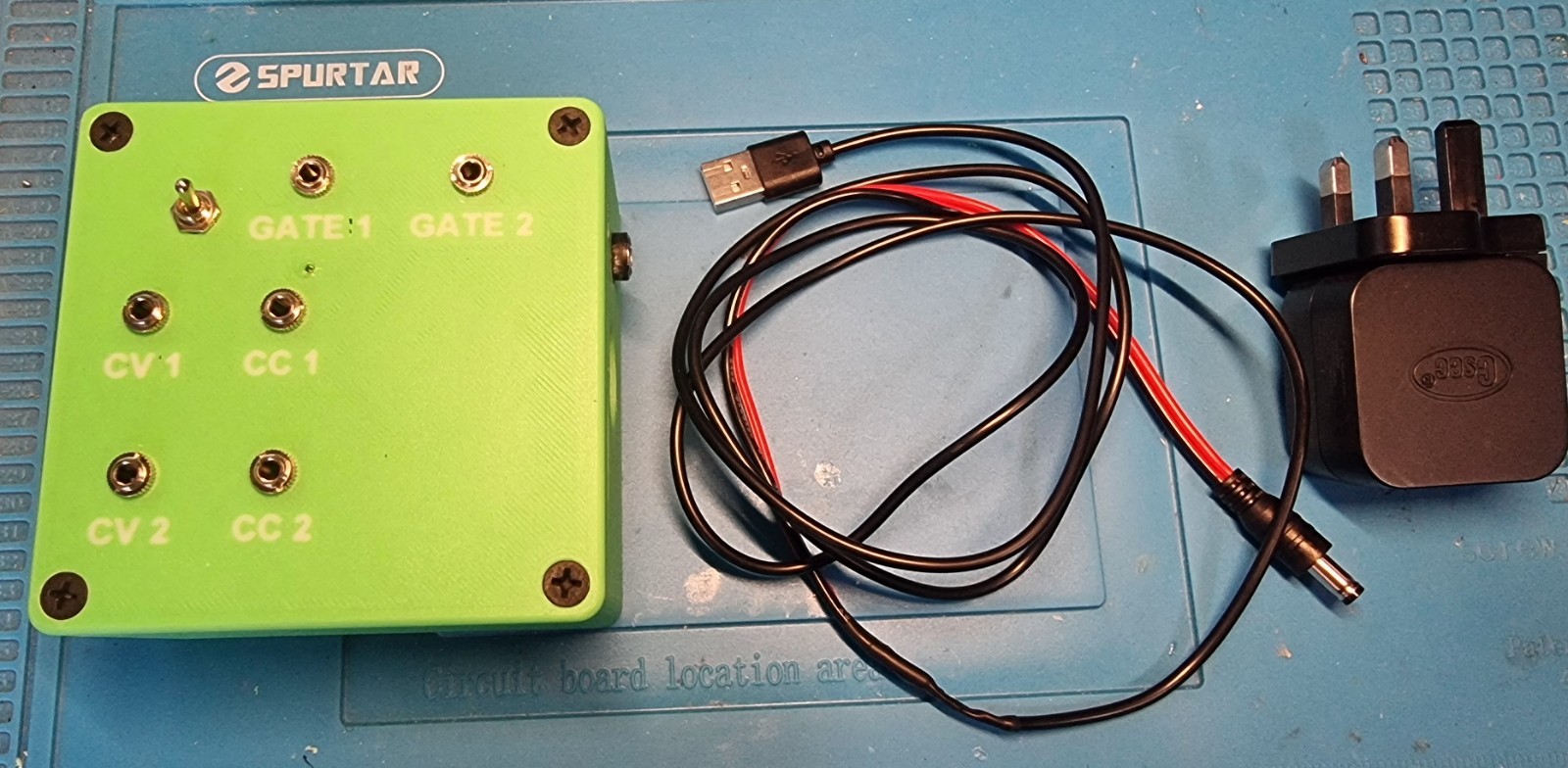

MIDI to CV Interface V1.4

Status: Active
Voltage In: 5 Volt standard USB
Current Draw: 0.015 Amps
Voltage Out: 3.8 Volts
Specs: 4-octave
Accuracy: +/- 0.01 to +/- 0.3 Volts, 1/8th of a note
Outputs: 2 Gate, 2 Voltage Out, 2 Midi CC to Voltage
Last Firmware Update: May 2026

This was the fourth edition and was put together by hand.
Detachable power cable was fine tuned with different connector.
Update to version 1.2 to fit the new case for 1.3, with more outputs.
Indented mounts were adopted; all devices 1.4 forward are this mount.
Accuracy improved via new massive firmware update.
Output connectors were updated with indentation and lid is thicker.
This is the last active 5v, 4 Oct version, Options have been extended.
Now supports 4x Note to CV, and 4x CC to CV on request.
Firmware updates still active, email support@breadboardstudios.com for free updates

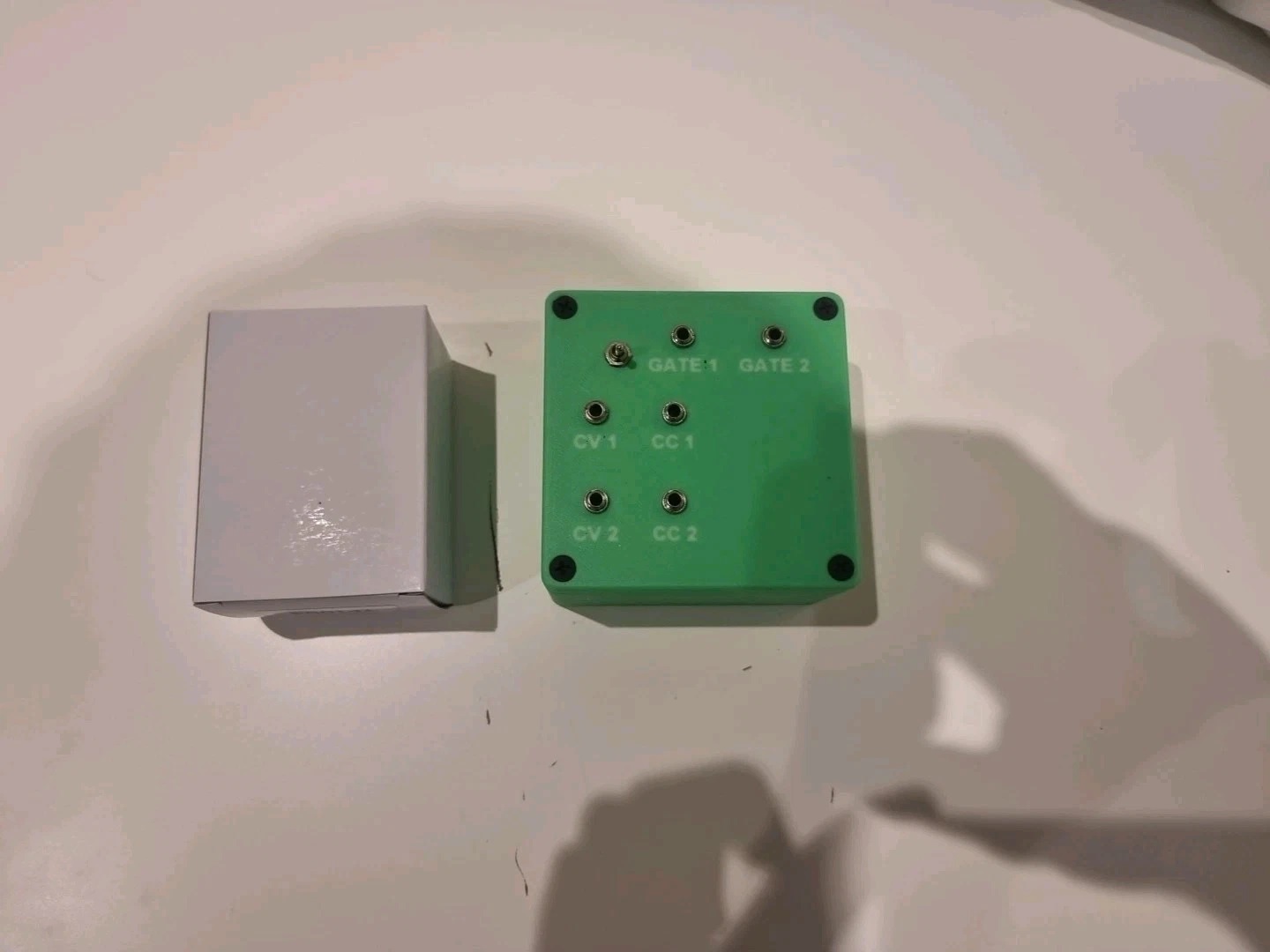

MIDI to CV Interface V2.0

Status: Active, May 2026 Launch
Voltage In: 12 Volt Tiger Power supply
Current Draw: 0.035 Amps
Voltage Out: 8.0 Volts
Specs: 8-octave
Accuracy: +/- 0.01 to +/- 0.3 Volts, 1/8th of a note
Outputs: 2 Gate, 2 Voltage Out, 2 Midi CC to Voltage
Last Firmware Update: May 2026

This is the fully revamped 2.0 model.
Indented mounts were reused from 1.4 model.
Accuracy improved via new massive firmware update for new range.
This is the current go-to model, with lifetime firmware, support, and one at-fault damage repair.
Supports 4x Note to CV, and 4x CC to CV on request like 1.4 model.
Firmware updates still active, email support@breadboardstudios.com for free updates

VOLTS/DIV

CH 1ACGND

SEC/DIV

A SWPVARX10

TRIGGER

AUTONORMDC

VOLTS/DIV

CH 2ACDC

TIMEBASE

B SWPVARX10

TRIGGER

AUTONORMLINE

VOLTS/DIV

CH 3ACDC

TIMEBASE

C SWPVARX5

TRIGGER

AUTONORMEXT

VIDEOS

Retro Revival Stream Archive

We do as many repairs, designs, and game-development sessions live on stream as we can.
Since we always have multiple projects on the bench, we often focus on user-submitted repairs.
Especially the ones that help people reconnect with their childhood consoles, VHS tapes, and old memories.
We never charge for the work or ask for money.
All we ask is that people put up one of our stickers or support us by tuning in.
On stream, we cover retro console repair, Super Nintendo polymods, and late-generation VCR work through our Retro Revival Program.
Email support@breadboardstudios.com if you have something powered that needs help.

Bench Highlight

Live repair archive: Repair on a High-end HDMI VCR (Panasonic DMR-EZ48) power board in total meltdown.
8 Caps had burnt all the way down to the ground plane and required intense trace repair and UV masking.

Bench Highlight

Live repair archive: Another repair on a high-end HDMI VCR (Panasonic DMR-EZ47).
This particular unit had an attempted recap gone wrong, likely attempting to follow one of our videos from the looks. Very slow process, but we got it in the end.

Bench Highlight

Live repair archive: Here we have one of our "Retro Revival" series. A custom LED light job and clear case transfer on a very tired Super Nintendo.
The LED PCB is a custom in-house job, and really makes the transparent case pop!

VOLTS/DIV

CH 1ACGND

SEC/DIV

A SWPVARX10

TRIGGER

AUTONORMDC

VOLTS/DIV

CH 2ACDC

TIMEBASE

B SWPVARX10

TRIGGER

AUTONORMLINE

VOLTS/DIV

CH 3ACDC

TIMEBASE

C SWPVARX5

TRIGGER

AUTONORMEXT

DATA ARCHIVES

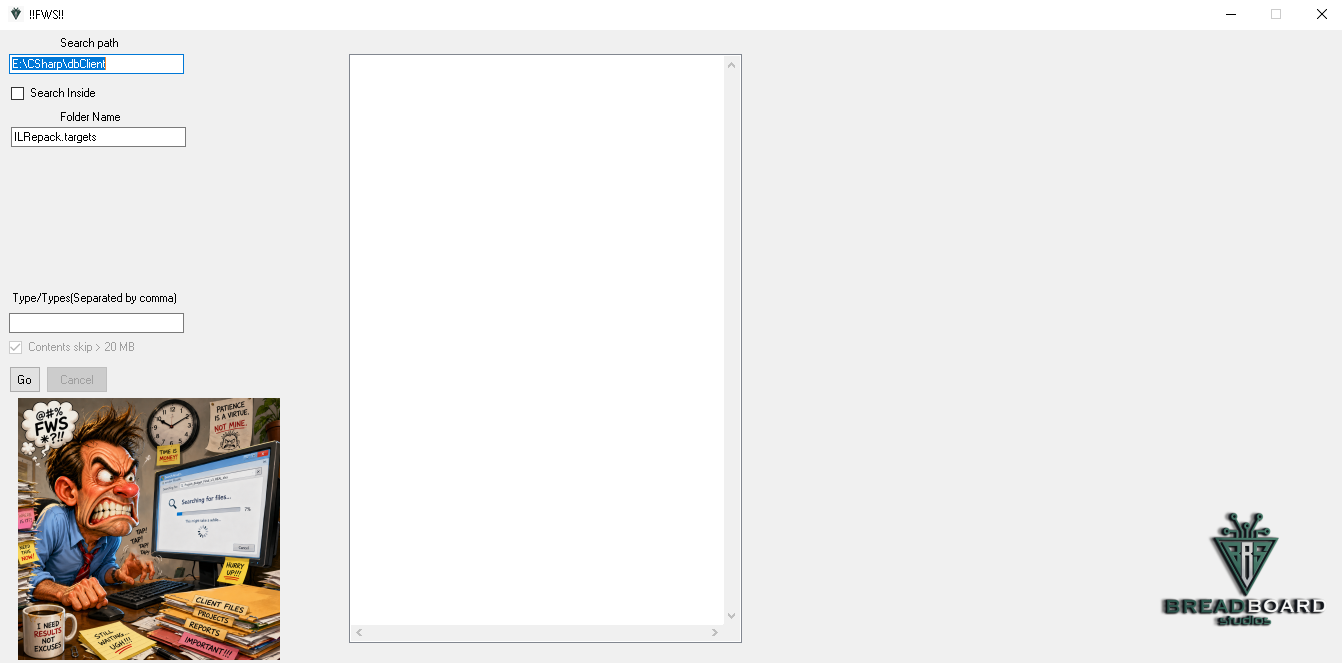

Program: Fast Windows Search - FWS!

Fast Windows Search is a replacement for Windows Search that relied heavily on indexing and leaves a lot to be desired when searching in files.
Since Microsoft won't let me name it "FUCK WINDOWS SEARCH" in the Microsoft Store, we landed on "FWS Fast Windows Search".
FWS is a non-indexed, multi-threaded, filename, content, and regex search.
Large file contents, and non-ASCII based files are skipped on content search, bypassing the large list of files since their contents are non-binary. These are particularly useful for developers who want to find every reference in a terraform file or code.
You get a nice handy file preview of the file content search, and the option to export the results.

[ MANUAL DOWNLOAD ]

Program: BBSql

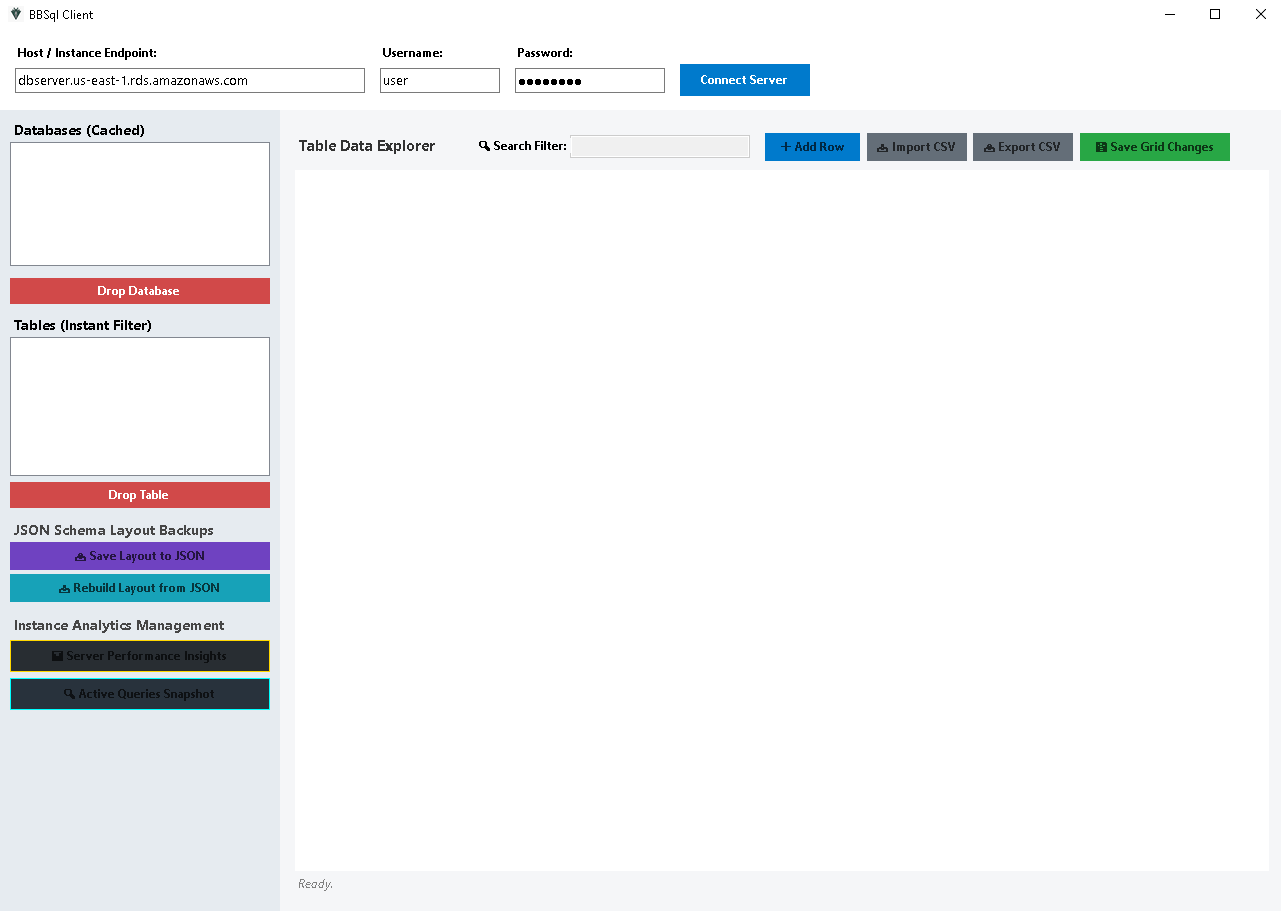

BBSql is a lightweight, fast MySQL/database GUI-based tool.
It features a schema export/import feature, to allow a backup of db structure but not the data within.
Data export and database export have been split, allowing you to recreate DR databases in a GUI based tool. Other features are edit on the fly via gui, long-running query search and kill tools, and full db structure tree view.

[ MANUAL DOWNLOAD ]

Program: BBS FFT

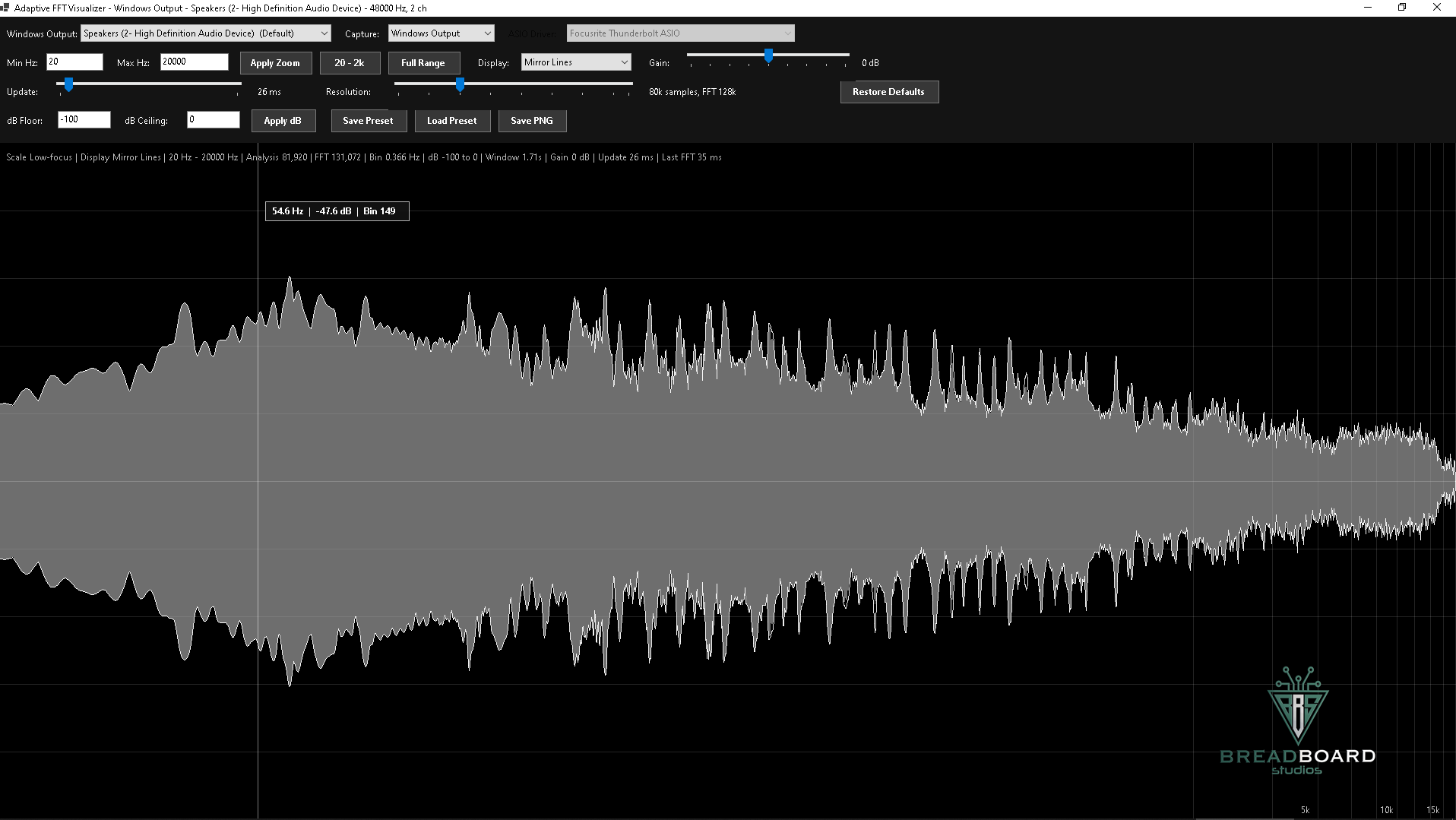

BBS FFT is an FFT-based, audio spectrum analyzer.
